Specification

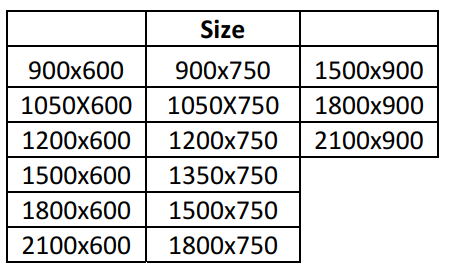

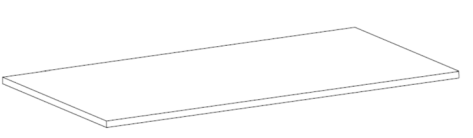

Work Surface:
Work surface made of 25mm thick Particle board both Laminate finish with 2mm thick PVC edge bedding

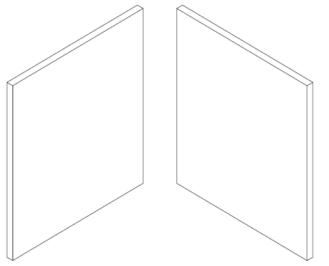

Gable end
made of 19mm thick pre lam particle board with PVC edge bedding with leveler fitting,

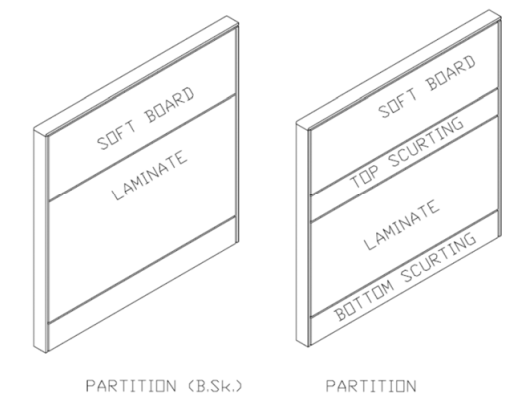

Partition
Full n low height partition made of 60 n 78mm thick Aluminum extrusion 2 vertical and number of horizontal. Aluminum trims duly powder coated /anodize. In case of full height partition Vertical reach up to fall ceiling with provision of passes cables at bottom n above table for electrical n data switches. Tiles made of 9mm thick pre lam particle board both side laminate finishes \ Soft board coated with fabric \ White board n glass 6mm thick’ Partition in different like 90,120, 180,270 degree, with leveler necessary knock down fitting . Partition Height: 900, 1050, 1200,1350,1650,2400 n 2700

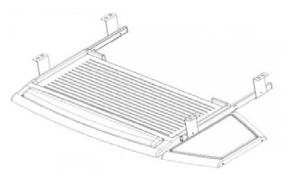

KEY BOARD TRAY
key board made of m. s. sheet duly powder coated, It has an ergonomically design with telescopic channel also available in plastic molded. can be Mounted below the table / work surface.

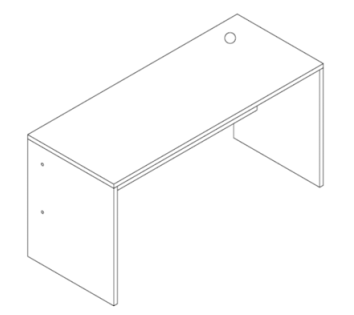

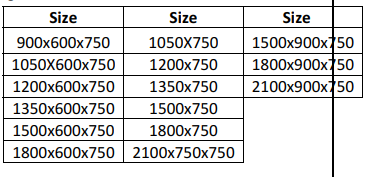

Table
Work surface made of 25mm thick particle board both side laminate finish with 2mm Thick PVC edge bedding, with two gable end and Apron made of 19mm thick particle board With PVC edge bedding with necessary knock down fitting.

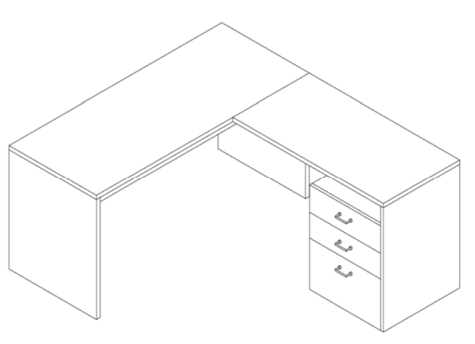

Run Office
Work surface made of 25mm thick particle board both side laminate finish with 2mm Thick PVC edge bedding, with two gable end and Apron made of 19mm thick particle board With PVC edge bedding with necessary knocks down fitting.

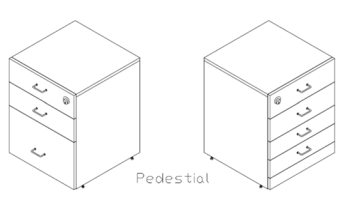

Pedestal
Top, Bottom, two sides made of 19mm thick particle board both side laminate finish with PVC edge bedding and back 9mm thick particle board. 2drawer +1filing Dr. Meta drawer with
powder coated with slide drawer channel. With handle n lock necessary knock down fitting. (option: castors)
| Pedestal | SIZE |
| Pedestal -1Dr + 1shtr | 450x450X685 |
| Pedestal -1Dr + 1FDr | 450X450X485 |
| Pedestal -2Dr + 1Fdr | 450X450X685 |
| Pedestal -4Dwr | 450X450X685 |
Credenza
Top, Bottom, two sides n open able shutters made of 19mm thick particle board both side laminate finish with PVC edge bedding and back 9mm thick particle board PLPB laminate finish with handle, inches n lock necessary knock down fitting.

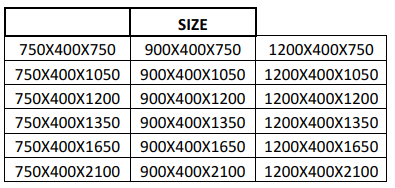

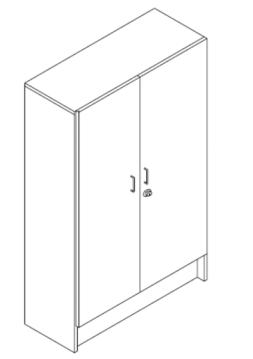

Vertical Storage Unit
Top, Bottom, two sides n open able shutters made of 19mm thick particle board both side laminate finish with PVC edge bedding and back 9mm thick particle board PLPB laminate finish with handle, inches n lock necessary knock down fitting
Hanging Storage Unit

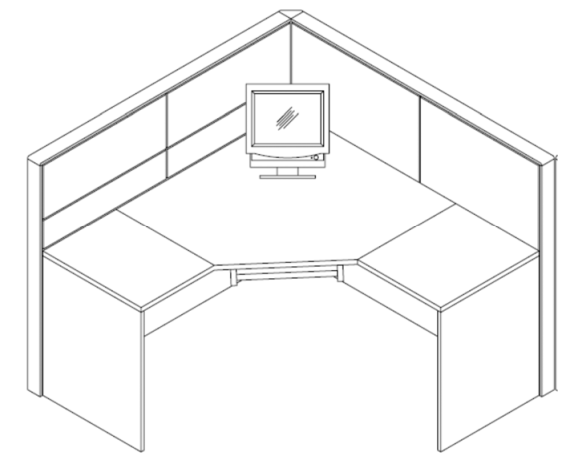

Cockpit Work Station
Work surface made of 25mm thick Particle board both side Laminate finish with 2mm thick PVC edge bedding, with two side support made of 19mm thick prelim particle board with PVC edge bedding with leveler fitting, attach with partition

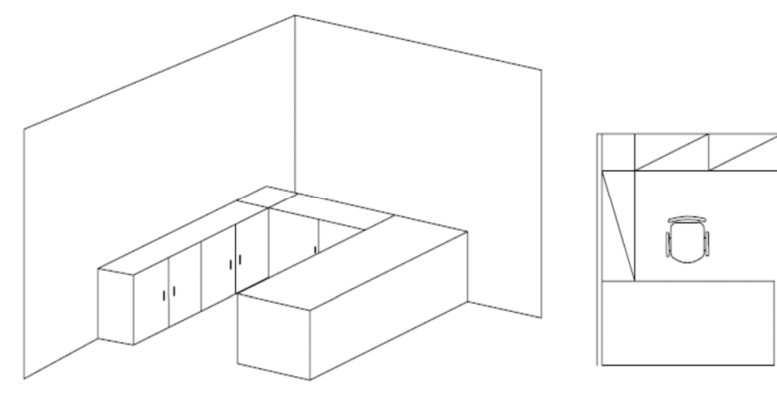

Executive Desk
Work surface made of 25mm thick particle board both side laminate finish with 2mm thick PVC edge bedding, with two gable end and Apron made of 19mm thick particle board laminate finish with PVC edge bedding with necessary knock down fitting. Back & Side Credenza: Top, Bottom, two sides n open able shutters made of 19mm thick particle board both side laminate finish with PVC edge bedding and back 9mm thick particle board both side laminate finish with handle, inches n lock necessary knock down fitting.

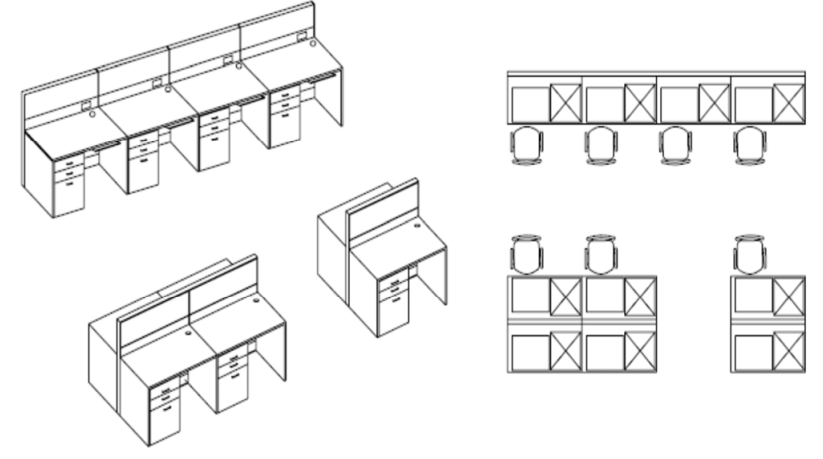

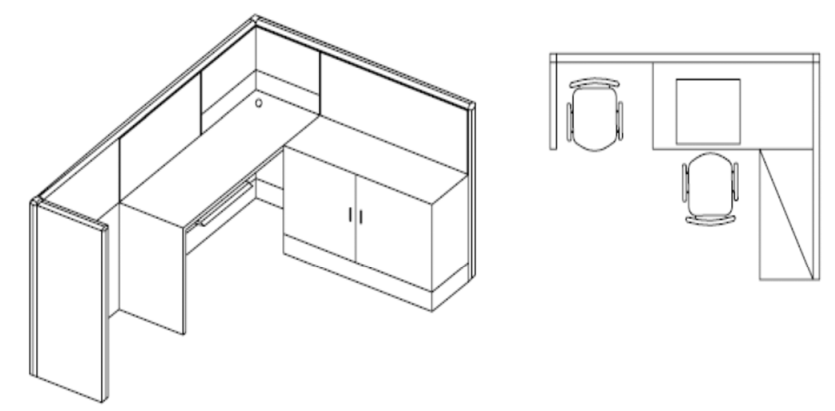

Cubical Work Station
Work surface made of 25mm thick particle board both side laminate finish with thick PVC edge bedding, with two gable end and Apron made of 19mm thick particle board with PVC edge bedding with necessary knock down fitting.

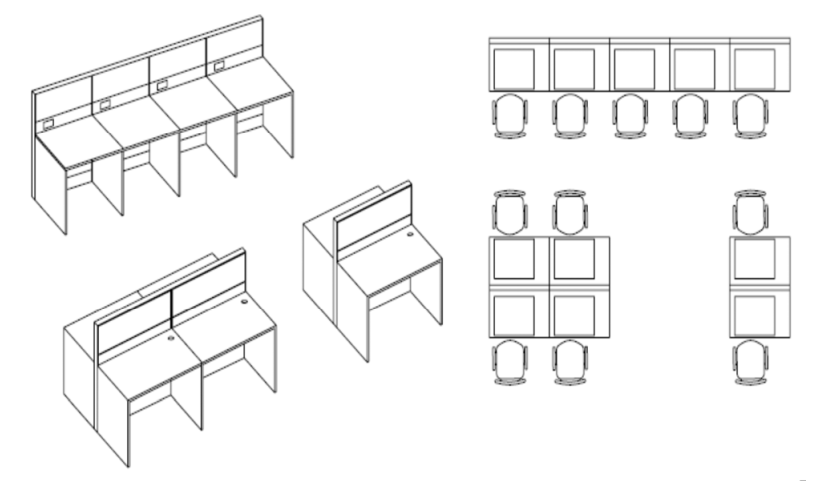

Call center work stn
Work surface made of 25mm thick Partical board both side laminate finish with 2mm thick PVC edge bedding, with gable end made of 19mm thick prelam Particle board with PVC edge bedding with necessary knock down fitting, attach to partition.
Linear work stn
Work surface made of 25mm thick Partical board both side laminate finish with 2mm thick PVC edge bedding, with gable end made of 19mm thick prelam Particle board with PVC edge bedding with necessary knock down fitting, attach to partition..

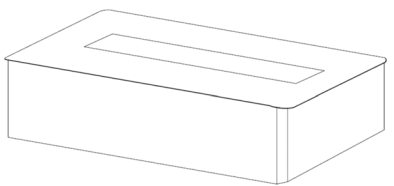

Meeting Table
Conference Table
Work surface made of 25mm thick in particle board both side laminate finish with 2mm thick PVC edge bedding, with center H, X n + shape support made of 19mm thick pre lam particle board with PVC edge bedding with necessary knock down fitting, provision for wire management.
